LLM-Friendly Wiki for an Enterprise WMS
A Karpathy-inspired Obsidian vault for human + AI context

What it is

A separate Markdown vault that sits next to the WMS source tree (aai-wms-api / aaiwms). Every page has YAML frontmatter that names the source paths it documents (aai-wms-api/app/Http/Controllers, aaiwms/pages), the database connection it touches, related wiki pages, a tag list, and a last_verified date. When a Claude Code or other AI agent opens a session on the repo, the agent’s CLAUDE.md points it at the wiki and tells it: edit a controller, update the matching wiki page in the same turn, bump the timestamp.

Structure: ~20 top-level folders (Architecture, Backend, Database, Decisions, Examples, Frontend, Integrations, Modules, Modules-v2, Rules, Runbooks, Tags, Tutorials, Workflows, plus Glossary, STYLE, Paths-and-Patterns, TechDebt). Every folder has an _INDEX.md that lists its pages so a single grep gives you the catalog without reading the full tree.

The bottleneck

The WMS is a real codebase — 251 Eloquent models, 103 controllers, 315 migrations on the API; 130 Vue pages on the web admin; 13 feature modules in the Flutter app. A human onboarding to a single module takes days, and an LLM agent asked to make a non-trivial change burns most of its context window just locating the right files. Specific pain:

• Onboarding a new dev (or a new agent session) starts with “where does X live?” — not “what should X do?”
• The same file is referenced by multiple controllers / multiple Vue views; tracing dependencies by reading code alone is slow.
• Migration history, design decisions, and runbook procedures live in Slack threads + commit messages — ephemeral, ungrepable, lost.
• When an AI agent asked “why is this column nullable?” the truthful answer was “a decision from six months ago that nobody remembers” — so the agent over-engineered around it.
• External integrations (SAP, YLEO, BBraun, BIPC, Epson) each have their own auth, payload shape, and quirks — rediscovering them per incident is expensive.

The ask: a single artifact, hand-maintained, that both humans and LLM agents can read, with enough structure that an agent can navigate it deterministically (frontmatter + _INDEX.md per folder) and enough discipline that pages stay current (every edit to source triggers a wiki update in the same commit).

How I broke it down

• Obsidian vault, not a static-site generator. Editing is plain Markdown in any editor; Obsidian gives the graph view + tags + backlinks for the human reader. No build step, no broken-link runtime.
• YAML frontmatter as the contract. Every page has title, domain, source_paths[], db_connection, related[], tags[], and last_verified. Agents are told to grep frontmatter first, body second — the structured fields answer 80% of routing questions.
• Folder-per-_INDEX.md pattern. Each top-level folder ships an _INDEX.md that names every page in the folder with a one-line description. Grep the index, not the full file body. This cuts token cost dramatically on agent sessions.
• Explicit source → wiki mapping in the CLAUDE.md of each source repo: app/Http/Controllers/*Controller.php → Backend/Controllers/, app/Models/*.php → Backend/Models/, etc. So the agent never has to guess where to write.
• Same-turn updates as the rule. Every commit to source must bump last_verified on the matching wiki page in the same turn. Documented in STYLE.md; enforced by review.
• Decisions folder for the “why.” Architectural decisions, schema choices, integration quirks all live as dated entries in Decisions/. When an agent finds an unusual choice in the code, the wiki has the receipt.
• Runbooks for the “how.” Step-by-step procedures (recover a stuck SAP batch, replay a failed dispatch, rebuild the YLEO index) live in Runbooks/ — agent-readable in crisis, human-readable in calm.
• Karpathy coding guidelines inside the CLAUDE.md. The same guidance Karpathy publishes (think before coding, simplicity first, surgical changes, goal-driven execution) is mirrored into the project agent guide. Agents read it before touching anything.

What I built

Vault structure shipped:

• 00-SYSTEM-OVERVIEW.md — one-page architecture diagram, tech stack, key databases, external integrations. First file an agent reads.
• Architecture/ — the higher-level pieces: multi-tenant model, queue topology, scheduler, auth strategy.
• Backend/ with subfolders for Controllers/, Models/, Services/, Jobs/, Observers/, Middleware/, Traits/ — mirrors the Laravel app folder one-to-one.
• Frontend/ with Pages/, Components/, Store/ — mirrors the Nuxt app.
• Database/ — per-table docs: columns, indexes, FK relationships, migration history, gotchas.
• Modules/ and Modules-v2/ — vertical slices (Receiving, Picking, Dispatch, Validator, Countsheet, Stock Movement, Audit Trail) with end-to-end flow per module.
• Workflows/ — cross-cutting flows (a full picking cycle, a complete dispatch turnaround, SAP-to-WMS document ingestion).
• Integrations/ — one page per external system (SAP, YLEO, BBraun, BIPC, Epson) with auth, payload shape, sample request/response, known quirks.
• Decisions/ — dated ADRs explaining why a choice was made and what alternatives were rejected.
• Runbooks/ — ops procedures for on-call.
• Tutorials/ — opinionated how-to-add-a-new-module / how-to-add-a-new-table walkthroughs.
• Examples/ — canonical code patterns extracted from the codebase, with frontmatter linking back to the source file.
• Rules/ — permission rules, validation rules, RBAC matrix.
• Glossary.md, STYLE.md, Paths-and-Patterns.md, TechDebt.md, Tags/ — cross-cutting reference.
• scripts/ — small helper scripts (generate a fresh _INDEX.md, validate frontmatter, list pages with stale last_verified dates).

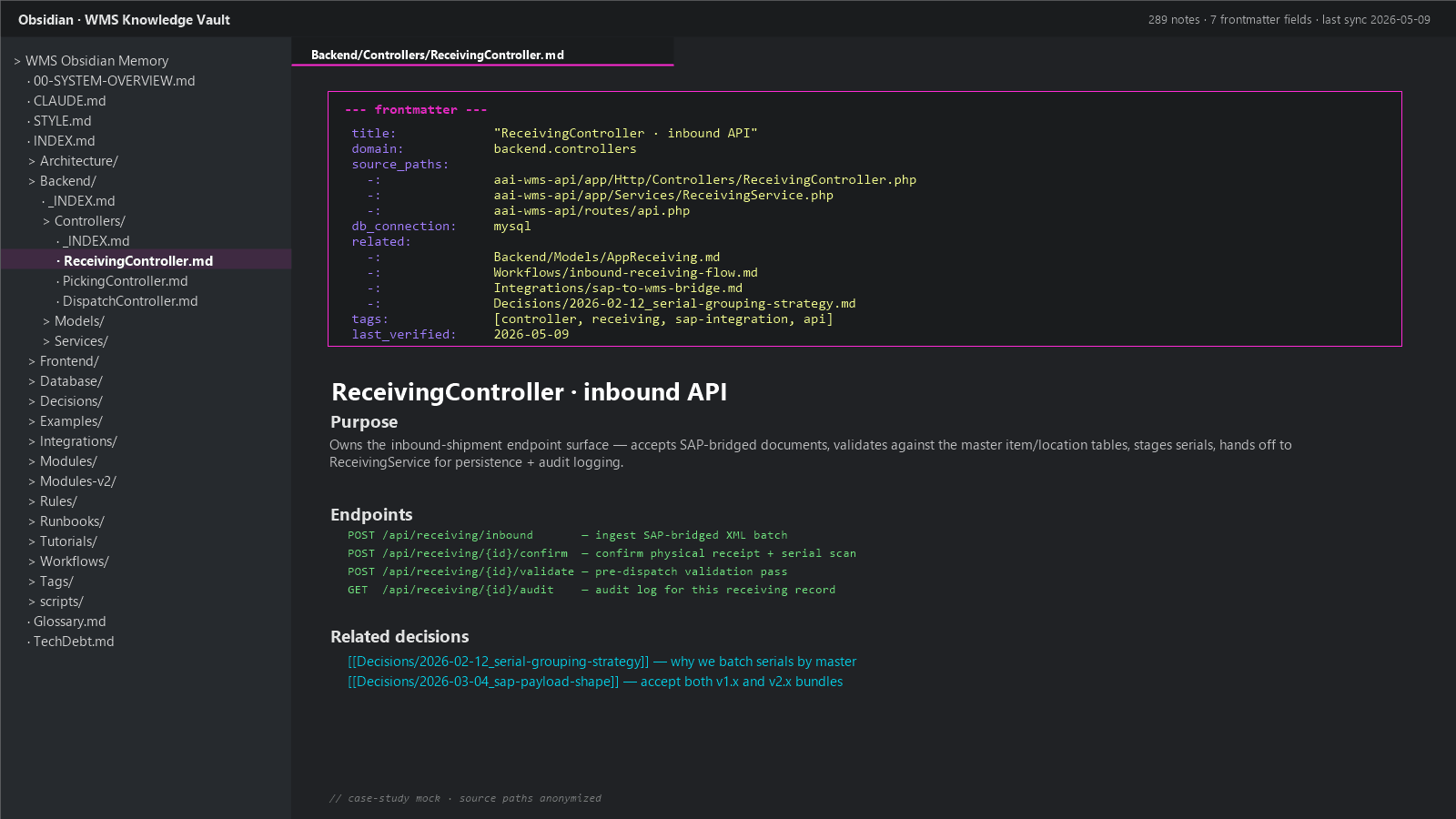

Example: the frontmatter shape every page follows — this is what makes the vault LLM-readable:

---
title: ReceivingController · inbound API
domain: backend.controllers
source_paths:
  - aai-wms-api/app/Http/Controllers/ReceivingController.php
  - aai-wms-api/app/Services/ReceivingService.php
  - aai-wms-api/routes/api.php
db_connection: mysql
related:
  - Backend/Models/AppReceiving.md
  - Workflows/inbound-receiving-flow.md
  - Integrations/sap-to-wms-bridge.md
  - Decisions/2026-02-12_serial-grouping-strategy.md
tags: [controller, receiving, sap-integration, api]
last_verified: 2026-05-09
---

# ReceivingController · inbound API

## Purpose
Owns the inbound-shipment endpoint surface — accepts SAP-bridged documents,
validates against the master item / location tables, stages serials …

Tech

• Format: Markdown with YAML frontmatter; Obsidian as the human editor; any text editor for ad-hoc updates.
• Conventions: Per-folder _INDEX.md, fixed frontmatter schema, last_verified stamps, source → wiki mapping declared in each repo’s CLAUDE.md.
• Integration with AI agents: The agent guide (CLAUDE.md) tells Claude Code / Cursor / Cline / etc. to grep _INDEX.md first, frontmatter second, body last; to edit the matching wiki page in the same turn as the source; to bump last_verified on every edit.
• Quality scripts: small Bash / PHP scripts under scripts/ that list stale pages, validate frontmatter shape, regenerate _INDEX.md from current folder contents.
• Inspiration: Andrej Karpathy’s ongoing thesis that the most valuable artifact for AI-assisted coding is a well-structured wiki of your own code (not a chat history, not a vector database, not a prompt library — a wiki).

Results

Agent sessions that previously burned half their context window locating the right file now read the relevant _INDEX.md + page frontmatter and land on the right spot in seconds. New human team members start with the 00-SYSTEM-OVERVIEW.md and a path through Tutorials/ instead of guided tours. Architectural decisions survive past Slack-thread amnesia; runbook procedures don’t need to be reconstructed during incidents.

This case study is itself the philosophy — the wiki is the proof of work, not a metric on a chart.

What I’d do again — and differently

Worked well:

• Frontmatter discipline. Seven fields, every page, no exceptions. The schema is more important than the prose.
• _INDEX.md per folder. Cuts agent token cost dramatically vs. forcing the agent to enumerate folders.
• Same-turn-update rule. “Edit source, update wiki in the same commit” is the only rule that keeps a hand-maintained vault from rotting.
• Decisions folder. Capturing the “why” once, dated, has paid for itself many times when an agent asks about an unusual choice.
• Bundling Karpathy guidelines into the agent guide. Reduced the “LLM does too much” / “LLM over-refactors” failure mode meaningfully.

Would tighten:

• Lint frontmatter in CI. Currently scripts/ can flag bad frontmatter on demand — making it a pre-commit hook would close the drift window further.
• Auto-stamp last_verified. A small git hook that bumps the date on any wiki page touched in a commit would remove one manual step.
• Cross-link audit. Some related: entries now point at moved or renamed pages; a script to validate every related target exists would be cheap to write.
• Per-page TTL. Some pages need re-verification quarterly (integration auth flows), others survive years (architectural overviews). A verify_interval field in frontmatter would let a script flag the right pages at the right cadence.
